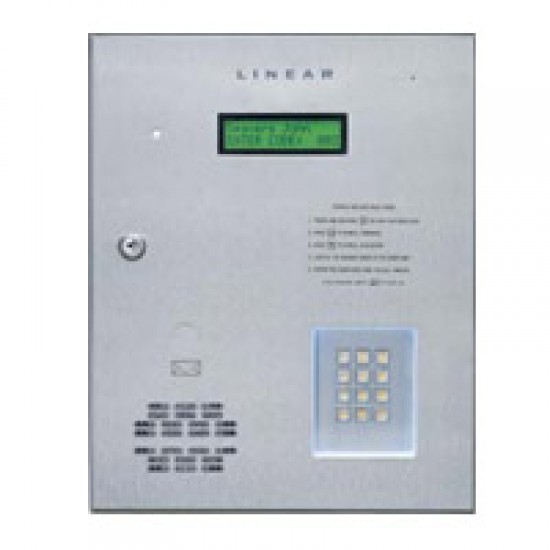

Linear AE-1000 Plus Series Telephone Entry
- Stock: Out Of Stock
- Model: AE-1000
- SKU: AE-1000
Linear AE-1000 Plus Telephone Entry Access Control
Linear’s Telephone Entry combines telephone entry with full-featured access control, including keyless entry and panic functions. It is extremely easy to operate, making it ideal for a wide range of applications, including apartments, condominiums, dormitories, office buildings, and gated communities. It offers security, convenience, and handicapped access.
| Product Info | |
| Features | Features Designed for use as a primary access control device for gated communities, parking garages, office buildings, apartments, dormitories, hotels/motels, commercial buildings and recreational facilities. Full control of 4 doors; each supporting request to exit and door status monitoring. Housed in a locked, rugged stainless steel face enclosure. Sidelit 12-key telephone style keypad. Backlit two-line directory display with programmable display messages. Built-in microphone and speaker. Programmable directory code length and talk time; extended talk time allowed per cardholder. 10,000 cardholders. 10,000 directory codes - each capable of dialing up to 12 digits. 46,500 block enrolled cards; 20,000 individual cards. 46,500 block enrolled transmitters; 20,000 individual transmitters. 20,000 entry codes. 20,000 event transaction log. Direct input for 2 card readers; add AM-CRI's for more. Local programming using a PC and AccessBase2000 at 33.6 Kbps. Remote programming using a PC and AccessBase2000 at 33.6 Kpbs. 32 security levels, 32 time zones, 32 door schedules, and 24 holiday schedules. Relay auto lock/unlock schedules. Automatic door relock when door sense input is used. Extensive ESD and lightning protection of all inputs and outputs. Cabinet tamper switch included; tamper events are tracked in the event log. All data memory is non-volatile FLASH with data retention in excess of 10 years. OPTIONAL EQUIPMENT: TR-1000 (ACP00909): trim ring for flush/recess mounting, CCM-1 (ACP00904): color camera receives power from control board, CPDM-1 (AAE00436): digital modulator combines video output of camera with CATV source to allow tenants to view on their TVs who is at the AE-1000. DocumentationAccessories |
